Canadian Solar 315W CS3K-315MS
Canadian Solar 315W CS3K-315MS

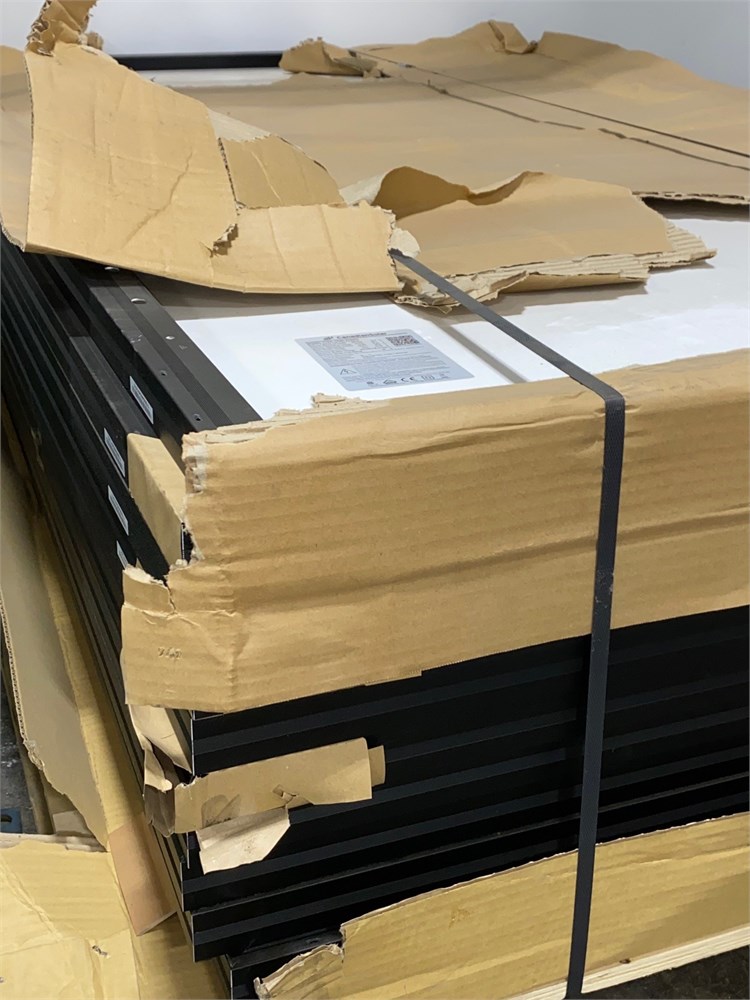

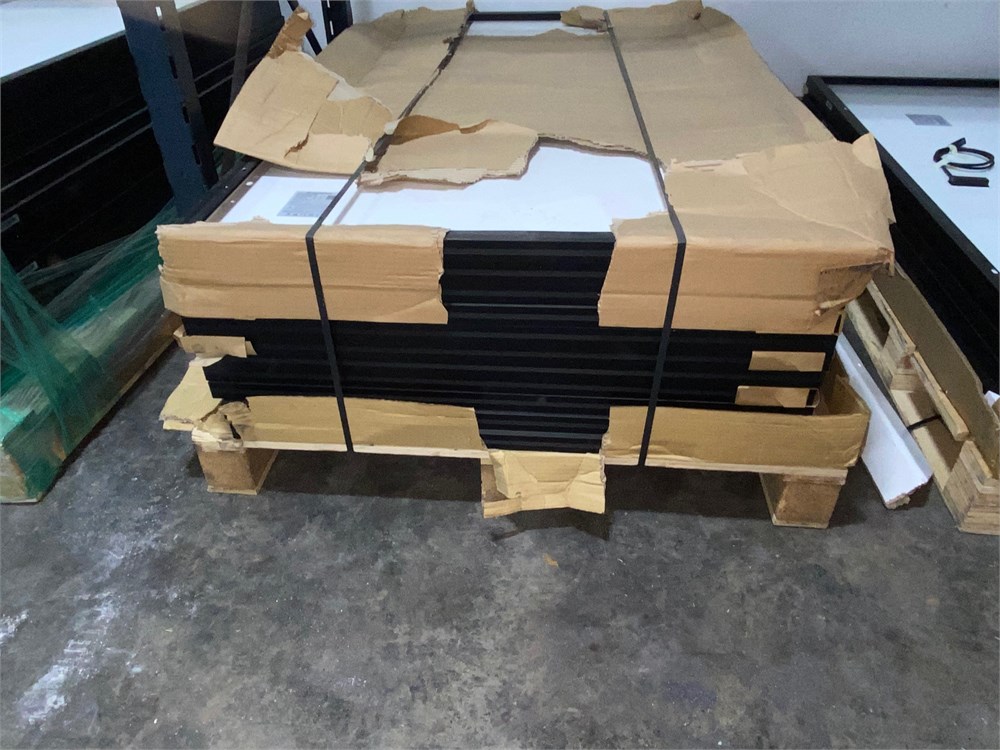

NEW- Quantity 11
- Final Bid Price: $900.00
- 4 Bid(s) Reserve Price Not Met View Bid History
Details
- Lot # 121
- System ID # 166827
- End Date
- Start Date
Description

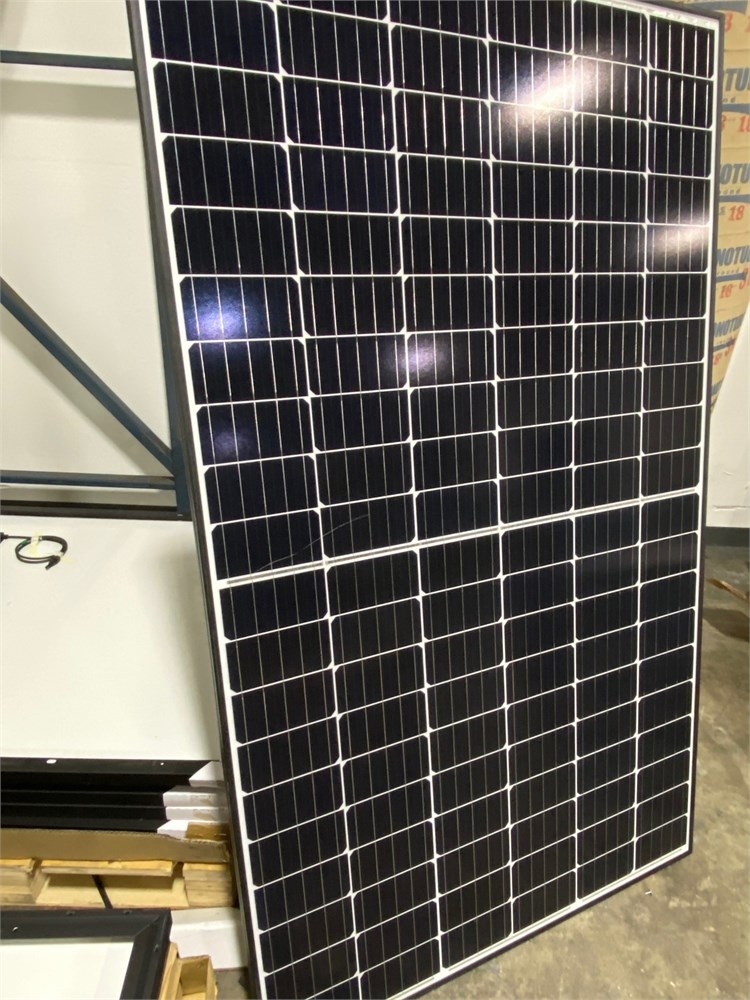

Canadian Solar 315W CS3K-315MS PERC Black Frame Module
More Power
• Low power loss in cell connection
• Low NMOT: 42 ± 3 °C
• Low temperature coefficient (Pmax): -0.36 % / °C
• Better shading tolerance
• High PTC rating of up to: 93.24 %
More Reliable
• Lower hot spot temperature
• Minimizes micro-cracks
• Heavy snow load up to 6000 Pa, wind load up to 4000 Pa
PRODUCT SPECIFICATIONS
- Characteristics
- ManufacturerCanadian Solar
- ModelCS1H-315MS PERC
- Rated Power Output [W]315
- Length [mm (in)]1675 mm (65.9 in)
- Width [mm (in)]992 mm (39.1 in)
- Depth [mm (in)]35 mm (1.38 in)
- Weight [kg (lb)]18.5kg (40.8lb)
- Modules
- PTC Power Rating [W]293.3
- Compatible with IronRidge CAMOYes
- Pmax - Maximum Power (STC) [W]315
- Voc - Open Circuit Voltage (STC) [V]39.9
- Isc - Short Circuit Current (STC) [A]10.06
- Vmpp-Voltage at Maximum Power (STC) [V]33.1
- Impp-Current at Maximum Power (STC) [A]9.52
- Module Efficiency (STC) [%]18.96%
- Nominal Operating Cell Temperature NOCT43 ±3 °C
- Series Fuse Rating [A]20
- Cell TechnologyMonocrystalline
- Number of Cells (Pieces)60
- Number of Bypass Diodes3
- Frame ColorBlack
- Back CoverWhite
- Frame Size [mm]35
- Module Length [in]66.9
- Module Width [in]39.1
- Junction BoxIP68
- ConnectorT4 series (1000 V)
- Fire Safety Classification (IEC 61730)Class C / Type 1
- Static Load Wind / Snow [Pa]2400 Pa / 5400 Pa
- Normal Operating Cell Temperature (NOCT)-40°C ~ +85°C
- Temperature Coefficients of P [%/°C]-.29
- Temperature Coefficients of V (Uoc)-.29
- Temperature Coefficients of I (Isc).05
