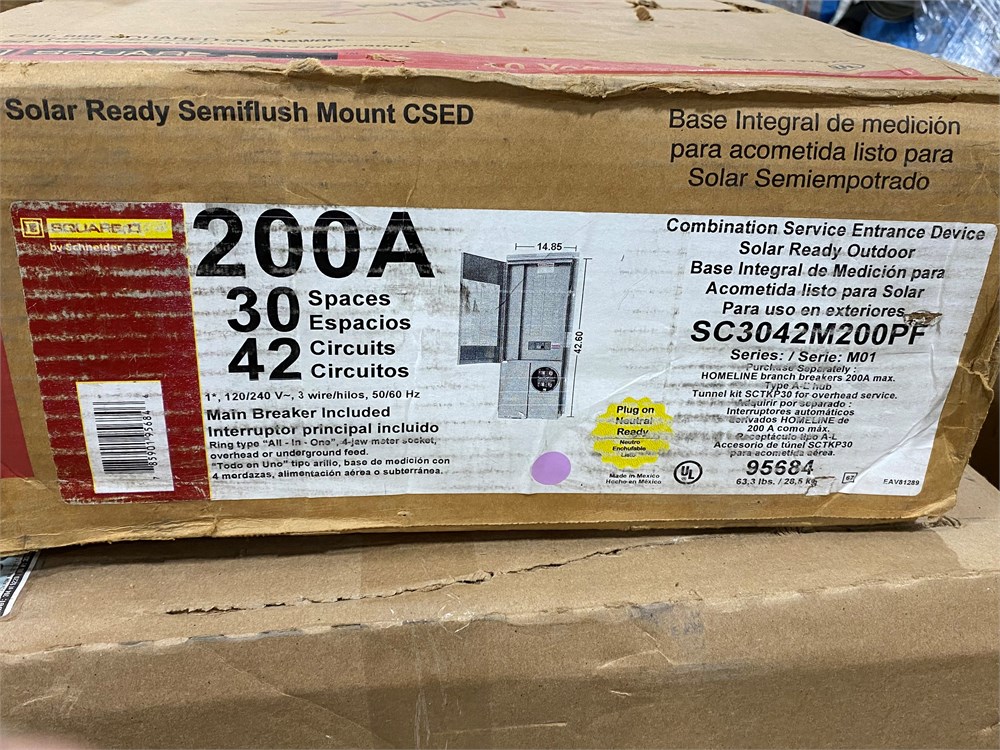

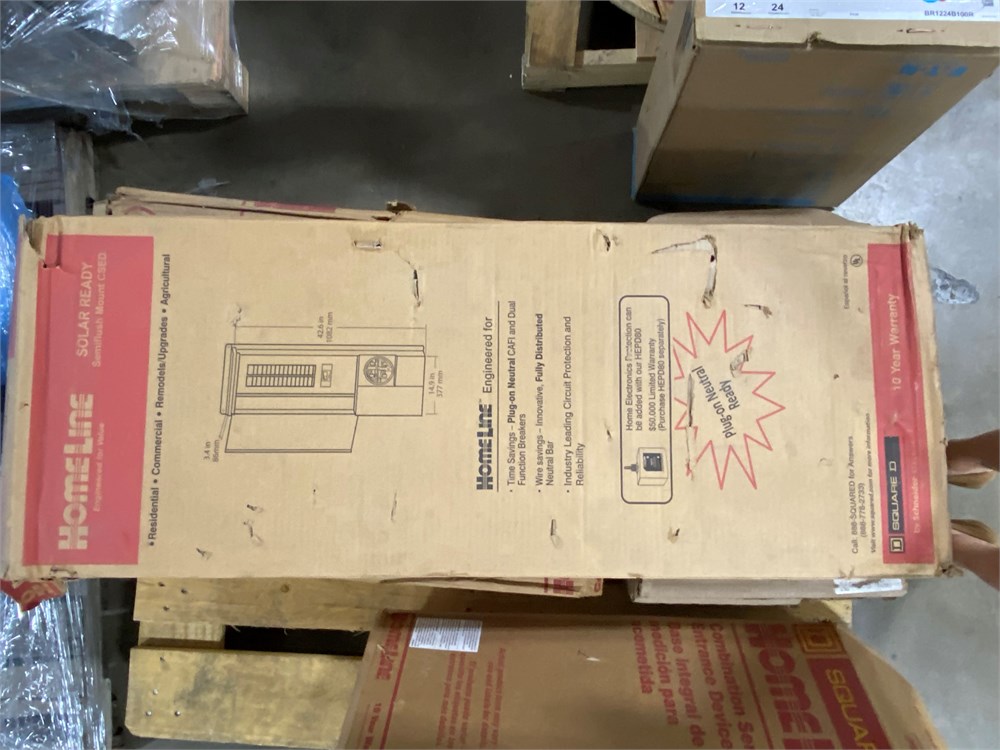

Square D Homeline SC3042M200PF

Combination Service Entrance Device- NEW

Lot # 505

Listing Image

Sold Winning Bid: $120.00
4 Bid(s) Reserve Price Met View Bid History

Payment Options
Seller Accepts Credit Cards

Payment Instructions
Other forms of payment include cash or certified check.

Details

Lot # 505
System ID # 181538
End Date
Start Date

Description

SC3042M200PF

Combination service entrance device

Solar Ready Outdoor

product or component type	All-In-One
range of product	Homeline
meter socket type	Ringed
hub type	A-L

Line Rated Current	200 A
Number of Phases	1 phase
short-circuit current	22 kA
Mounting	Semi flush outdoor)
number of spaces	30
number of circuits	42
Number of Tandem Breakers	12
electrical connection	Lugs line side Lugs service ground
Wire Size	AWG 12...AWG 2/0 aluminium)service ground AWG 4...250 kcmil aluminium/copper)line side AWG 14...AWG 2/0 copper)service ground
tightening torque	Main lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper Service ground 50 lb.in, AWG 14...AWG 2/0, copper Service ground 50 lb.in, AWG 12...AWG 2/0, aluminium Branch lugs 50 lb.in, AWG 14...AWG 4, copper Branch lugs 50 lb.in, AWG 12...AWG 2, aluminium Branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper Branch lugs 25 lb.in, AWG 8, aluminium/copper Branch lugs 20 lb.in, AWG 14...AWG 10, aluminium/copper Branch lugs 20 lb.in, AWG 12...AWG 10, aluminium/copper Cover 10 lb.in
Disconnect	Service disconnect (factory installed)
Disconnect Rating	200 A
Branch Breaker Rating	200 A
service feed location	UG OH outdoor
bypass type	No bypass
connections - terminals	Plug-on neutral
product compatibility	Solar ready
width	16.80 in (426.72 mm)
depth	7.20 in (182.88 mm)
height	44.37 in (1127.00 mm)
