(2) 10 kWh Sonnen Eco Smart Battery Storage Systems
NEW- QTY 2- ECO10SC-31 CA
- Starting Bid: $25,000.00
- 0 Bid(s)
- Lot # 02-006
- System ID # 203246
- End Date
- Start Date
Mfr: Sonnen Batterie
QUANTITY 2- FREE SHIPPING TO NORTHERN CA
| SONBT | ECO10SC-31 | ECO 10KWH,GEN 3.1,SCREEN,ZONE= CA |
| SONBT | ECO10SC-31 | ECO 10KWH,GEN 3.1,SCREEN,ZONE= CA |

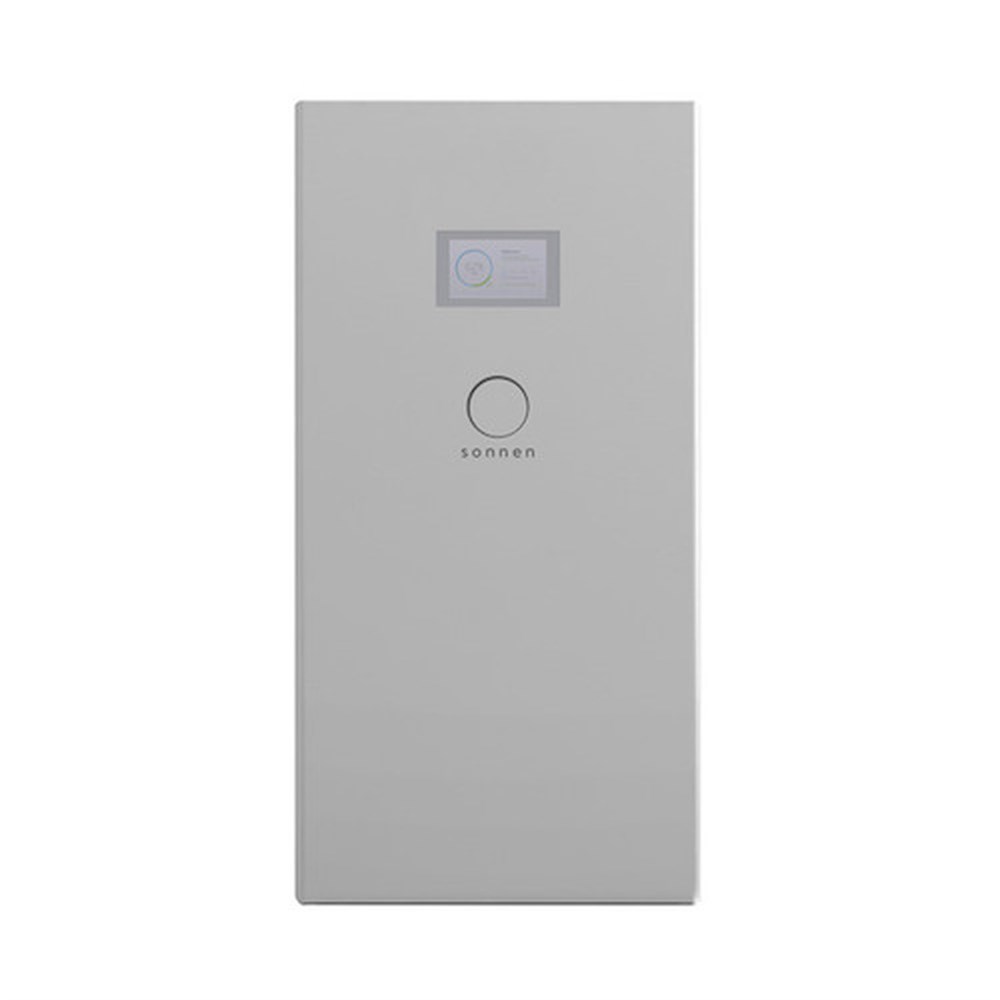

The sonnenBatterie eco 10 is an all-in-one 10 kWh solar battery storage solution and intelligent energy management software that integrates seamlessly with new or existing solar arrays to power your home or business with clean energy. This Sonnen Eco battery storage system has a 10 kWh useable capacity and delivers 7 kWh of continuous power. The sonnenBatterie eco is a complete system that comes ready for connection and includes an inverter, durable battery, intelligent energy manager, measurement technology and the software to operate it all smoothly. This model is the sonnen eco Gen 3.1 model, white unit, and does not come with a display screen.
The SonnenBatterie eco will save you money every day by utilizing energy from your solar PV system or the grid when it is cheapest, and using the stored energy from the battery to power your home when rates are more expensive. In the event of a power outage, the unique power detection system will sense the outage in real-time and automatically switch over to battery power
The Sonnen eco energy storage system uses lithium-iron phosphate (LiFePO4) battery technology, one of the most reliable, safest and longest-lasting storage technologies currently available. LiFePO4 is a popular technology for stationary storage systems due to its uniquely high chemical stability and resulting high reliability, durability and long lifespan.
The Sonnen eco stores energy when it is cheap and abundant and uses it to power the home or business when energy is more expensive and less abundant. By better managing energy usage throughout the day. All sonnenBatterie components and systems are UL Listed ensuring safety and performance for your home or business, and backed up by a 10,000 charge cycles or 10-year warranty for peace of mind.
|
MANUFACTURER: |
Sonnen |
|
MODEL: |
Sonnen eco 10, Gen 3.1, white unit w/display sceen |
|
TOTAL CAPACITY (@ 90% DOD): |
10 kWh |
|
NOMINAL POWER RATING (OFF-GRID OUTPUT AT 25 DEG C): |
8 kW |
|
NOMINAL POWER RATING (GRID-TIED OUTPUT AT 25 DEG C): |
7 kW |
|
WEIGHT (APPROXIMATE): |
543 lbs |
|
DIMENSIONS W”/H”/D” (APPROXIMATE): |
26 x 57 x 19 inches |
|
OFF-GRID SPECIFICATION: |
OFF-GRID SPECIFICATION |
|
CONTINUOUS AC OUTPUT CURRENT: |
33.3 A |
|
MAX POWER: |
100 ms - 17 KVA, 5 s - 12 KVA, 30 m - 9 KVA |
|
MAX AC CURRENT (CHARGE/DISCHARGE): |
1 ms - 100A, 100 ms - 70.7 A, 5 s - 50 A, 30 m - 37.5 A |
|
GENERAL SPECIFICATION: |
GENERAL SPECIFICATION |
|
GRID INTEGRATION: |
AC coupled |
|
APPLICATIONS: |
Self-consumption, Backup power, Time-of-use |
|
TRANSFER SWITCH: |
Automatic, integrated |
|
USABLE CAPACITY: |
2.25 kWh per battery module, up to 8 modules |
|
LISTED AND RECOGNIZED COMPONENTS: |
System certified – UL9540; Battery modules – UL1973; Inverter – UL1741; Transfer switch – UL1008; AC Breaker – UL489 |
|
INVERTER EFFICIENCY: |
92.5% CEC weighted, 95.0% peak |
|
ROUNDTRIP EFFICIENCY % (GRID<>BATTERY): |
>= 86% |
|
TEMPERATURE RANGE: |
41 °F - 113 °F |
|
VENTILATION: |
Forced Air |
|
COMMUNICATION PORTS: |
Ethernet |
|
COMMUNICATION PROTOCOLS / CONTROL: |
SunSpec Alliance / API available to select partners |
|
EMC / EMI PROTECTION: |
FCC Part 15B |
|
AC SPECIFICATION: |
AC SPECIFICATION |
|
AC GRID VOLTAGE: |
120/240 VAC (Split phase) |
|
NOMINAL AC INPUT CURRENT (GRID-TIED OPERATION): |
29 amps |
|
NOMINAL FREQUENCY: |
60 Hz |
|
ADJUSTABLE FREQUENCY RANGE: |
+/- 0.7 Hz from nominal |
|
METERING CAPABILITY: |
Power meter for load and PV production (not revenue grade) |
|
TARE LOSSES (W): |
60 watts |
|
TRANSIENT PROTECTION: |
IEEE C62.41 Class B |
|
BATTERY SPECIFICATION: |
BATTERY SPECIFICATION |
|
DC BATTERY INPUT VOLTAGE: |
44.5–53.5 VDC |
|
MAX CHARGE CURRENT: |
50 A per module |
|
CELL DISCHARGE: |
2.5kWh with 90% DoD |
|
OVERCHARGE PROTECTION: |
MOSFET & Fuse protection |
|
WARRANTY: |
10 year or 10,000 cycle system warranty – includes inverter, battery modules, cabinet and components |
